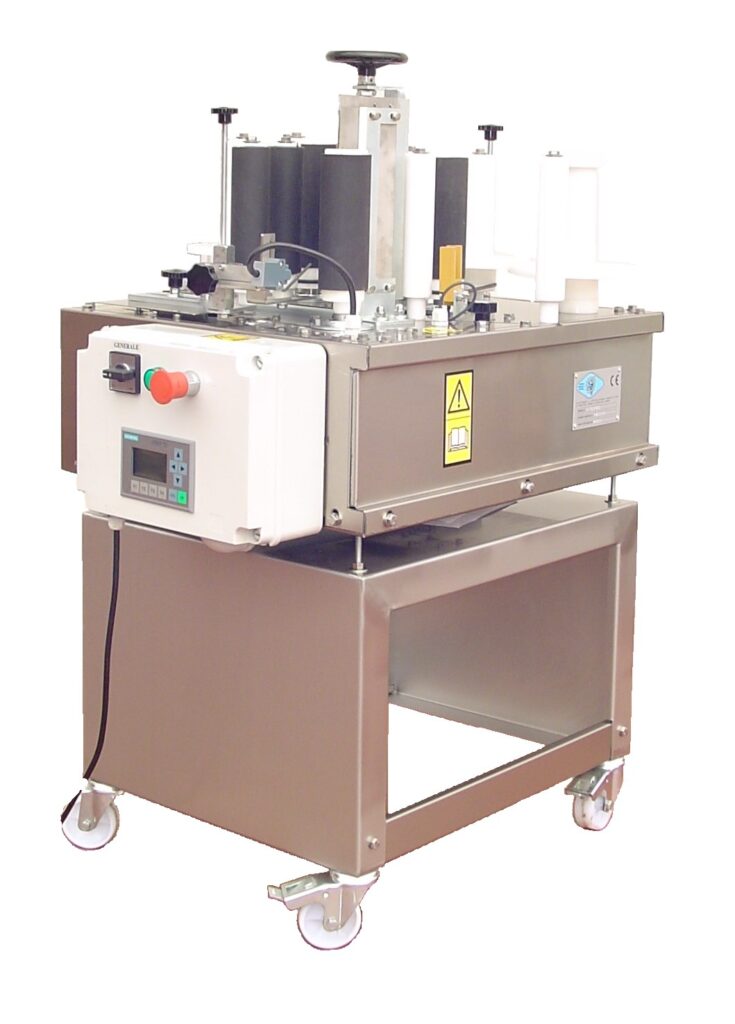

Labelling machine
Etc230
- AISI 304 stainless steel frame
- Self-sticking labels located on a band wound round on a bobbin
- Inner diameter of the bobbin from 65mm to 75mm
- Maximum external diameter of the bobbin: 200mm
- Maximum height of the band: 140mm
- It can apply both front-and back labels
- It is preferable to use rectangular labels
- Possibility to use labels which wind round the bottles
- Front – and back labels can be located either on the same bobbin or on two separate bobbins
- Diameter of the bottles up to 112mm
- The labelling time is about 3 seconds
230 Volt, 50 Hz mono-phase motor
Stainless steel G model wheeled support
Stamping device
Label sensor for already labelled bottles
Device to apply the band around the bottle-neck
Inverter for 110 Volt, 60 Hz feeding
